Specifications
e-System
Battery: Bosch InTube 600 Wh
Charger: Bosch Charger 4A 220-240V
Display: Bosch Kiox 300 + LED Remote
Motor: Bosch Performance Line CX
Frame
Frame: HIGH Aluminium Uni
Maximum loadable weight: 150kg
Drive
Chain: Shimano CN-LG500 9-11s, LINKGLIDE
Crankset: Crius ISIS Crankset + Chainring Spiderless BDU38
Derailleur Rear: Shimano CUES RD-U6000 10/11s, Shadow+
Gear: Shimano Derailleur
Number of gears: 10
Shifter Right: Shimano Triggershift CUES SL-U6000-10R, Rapidfire+
Suspension
Front Fork: Suntour XCM34-Boost DS 15AH4-110 120mm
Components
Front Brake: Shimano Hydraulic Disc brake Deore BR-MT420, 4 pistons, 203 mm
Rear Brake: Shimano Hydraulic Disc brake Deore BR-MT420, 4 pistons, 203 mm
Grips: Ghost GND51 Velo Comfort Grip VLG-1752D2
Handlebar: XLC Riser Bar HB-M32, Dia. 31.8 mm, Rise: 20 mm, backsweep 9°
Pedal: VP VPE-527 Alloy w/ Reflector
Saddle: Selle Royal MTB Vivo Ergo
Seatpost: Ghost Non Suspension MTB Dia. 34.9 mm, L: 400 mm 400 mm
Wheelset
Rim: Schurmann Craft Disc 622-30 32H
Tyre Schwalbe Nobby Nic Performance, 67EPI 65-622

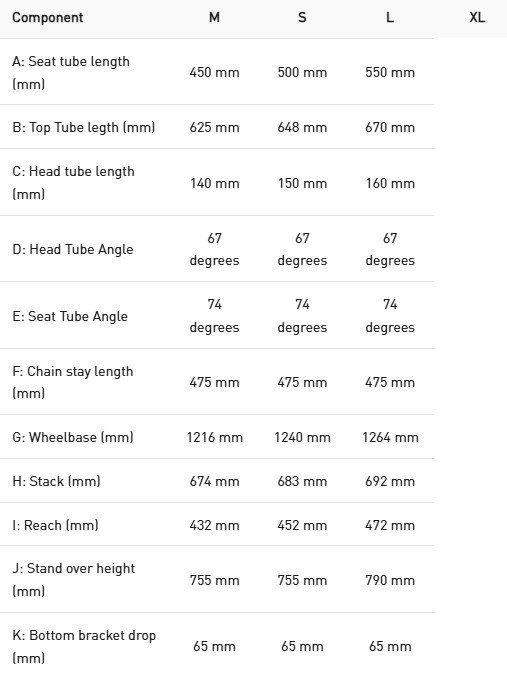

Geometry
